StileLine Steel Storefront Systems

Sustainable Impressions by StileLine

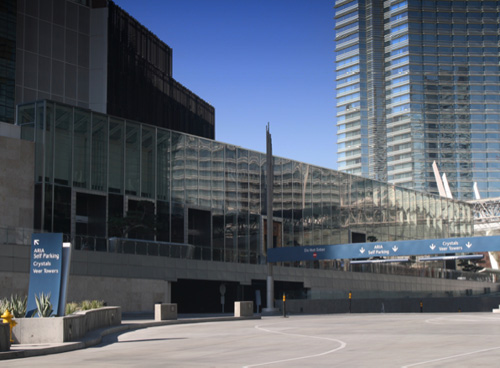

Mandarin Oriental Hotel, Las Vegas. NV

Architects specify StileLine™ Steel Storefront Systems for their strength, versatility, aesthetics, sustainability, and long-span capabilities. Because each system is built-to-order, you have the ability to specify virtually any profile, depth, or shape. With far more creative options than conventional aluminum systems, StileLine is equally at home on both new and restoration projects, at interior as well as exterior locations.

Design Latitude

  • Long Span Capabilities
  • Integrated or Exposed Structural Members
  • Built-to-Order Profiles
  • Modular Design for Ease of Installation
  • Operable Vents
  • Entrance Systems

Materials

  • A60 Galvanized Steel, Stainless Steel & Bronze
  • Factory Finishes and Surface Treatments
  • Green Materials and Manufacturing Processes
  • Extremely Long Life Cycle

Hybrid Systems

  • Bullet / Blast Resistant, Fire Rated, Sound Control

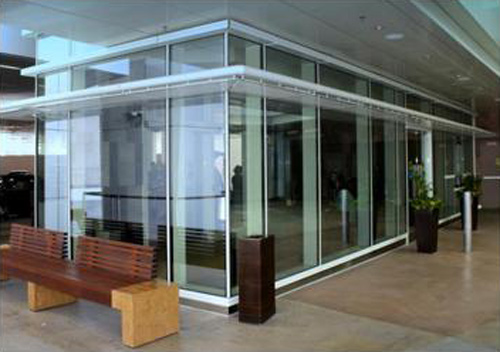

Tuck Glazed Steel Storefront Systems


Tuck Glazed

The StileLine Tuck Glazed System is a modular interior-glazed curtain wall utilizing a pocket set design suitable for both wet or dry glazing. Modules can be factory welded or bolted together with no exposed fasteners or clips. Receptors are available for clean transitions and easy anchorage. Installation time, compared to conventional aluminum stick-built systems, is greatly reduced. Structural framing members far outperform aluminum systems.

Tuck Glazed Systems are built-to-order to your exacting requirements, offering tremendous latitude in spans, profile dimensions, materials options, and finishes.

Tuck Glazed Section Details

T-4 Welded Assembly T-4 Mechanical Assembly T-5 Welded Assembly T-5 Mechanical Assembly T-1 Welded Assembly T-1 Mechanical Assembly T-2 Welded Assembly T-2 Mechanical Assembly T-5 Welded Assembly T-5 Mechanical Assembly T-3 Welded Assembly T-3 Mechanical Assembly T-6 Welded Assembly T-6 Mechanical Assembly

Tuck Glazed System Features

  • A60 Galvanized Steel, Stainless Steel, and Bronze
  • Factory Finishes and Metal Surface Treatments
  • Welded or Mechanical Assembly Options
  • Depth and Sightline can be Adjusted to Meet Design & Performance Criteria
  • Modular Design Simplifies Installation
  • Hybrid Options include Bullet Resistant, Fire Rated, and Sound Control

Tuck Glazed Glazing Options

Glazing Options

  • Single Glazed
  • Insulated Glass up to 1" OA
  • Hybrid Glass
    • Bullet/Blast Resistant
    • Acoustical
    • Fire Rated
  • Structural or Dry Glazing Options

NOTE: Size of profiles can be adjusted
Actual design of profile may change

Tuck Glazed Vents

Features

  • Single Glazed or insulated Glass
  • Vents Include the Following Hardware:
    • 4 Bar Stainless Steel Hinge
    • Stainless Steel Latching Device
    • Weatherstripping
  • Operable Vents Shall be Prehung

NOTE: Size of profiles can be adjusted
Actual design of profile may change

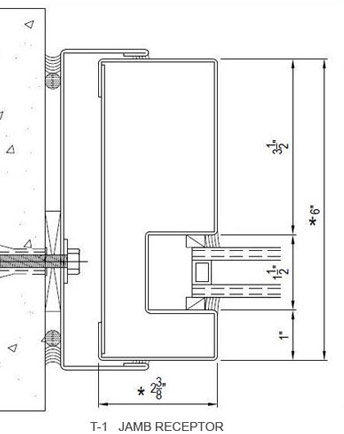

Tuck Glazed Receptor Option








NOTE: Size of profiles can be adjusted
Actual design of profile may change

Tuck Glazed I-Values



Tuck Glazed Specifications



Download Specs
Requires Adobe Acrobat

Download Specs
Requires MS Word

Tuck Glazed Hybrid Systems

The ultimate expression of StileLine versatility is exemplified in the creation of built-to-order hybrid storefront and entrance systems. Options such as Bullet-Resistance, Sound Control, and Fire Rating may be combined with standard systems to achieve a desired performance requirement. In cases where aesthetic demands require something creative and unique, our consultants will work closely with you to interpret and clarify your vision. Please contact factory to discuss your particular requirements.

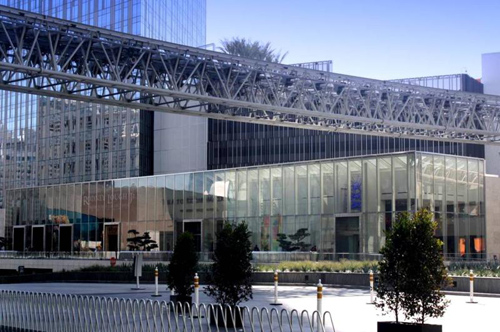

Flush Glazed Steel Storefront Systems


Flush Glazed

The StileLine Flush Glazed System is a modular system featuring a design suitable for both wet or dry glazing. Modules can be factory welded or bolted together with no exposed fasteners or clips. Receptors are available for clean transitions and easy anchorage. Installation time, compared to conventional aluminum stick-built systems, is greatly reduced. Structural framing members far outperform aluminum systems.

Flush Glazed Systems are built-to-order to your exacting requirements, offering tremendous latitude in spans, profile dimensions, materials options, and finishes.

Flush Glazed Section Details

F-4 Welded Assembly F-4 Mechanical Assembly F-5 Welded Assembly F-5 Mechanical Assembly F-1 Welded Assembly F-1 Mechanical Assembly F-2 Welded Assembly F-2 Mechanical Assembly F-5 Welded Assembly F-5 Mechanical Assembly F-3 Welded Assembly F-3 Mechanical Assembly F-6 Welded Assembly F-6 Mechanical Assembly

Flush Glazed System Features

  • A60 Galvanized Steel, Stainless Steel, and Bronze
  • Factory Finishes and Metal Surface Treatments
  • Welded or Mechanical Assembly Options
  • Depth and Sightline can be Adjusted to Meet Design & Performance Criteria
  • Modular Design Simplifies Installation
  • Hybrid Options include Bullet Resistant, Fire Rated, and Sound Control

Flush Glazed Glazing Options

Glazing Options

  • Single Glazed
  • Insulated Glass up to 1" OA
  • Hybrid Glass
    • Bullet/Blast Resistant
    • Acoustical
    • Fire Rated
  • Structural or Dry Glazing Options

NOTE: Size of profiles can be adjusted
Actual design of profile may change

Flush Glazed Vents

Features

  • Single Glazed or insulated Glass
  • Vents Include the Following Hardware:
    • 4 Bar Stainless Steel Hinge
    • Stainless Steel Latching Device
    • Weatherstripping
  • Operable Vents Shall be Prehung

NOTE: Size of profiles can be adjusted
Actual design of profile may change

Flush Glazed Receptor Option



NOTE: Size of profiles can be adjusted
Actual design of profile may change

Flush Glazed I-Values



Flush Glazed Specifications



Download Specs
Requires Adobe Acrobat

Download Specs
Requires MS Word

Flush Glazed Hybrid Systems

The ultimate expression of StileLine versatility is exemplified in the creation of built-to-order hybrid storefront and entrance systems. Options such as Bullet-Resistance, Sound Control, and Fire Rating may be combined with standard systems to achieve a desired performance requirement. In cases where aesthetic demands require something creative and unique, our consultants will work closely with you to interpret and clarify your vision. Please contact factory to discuss your particular requirements.

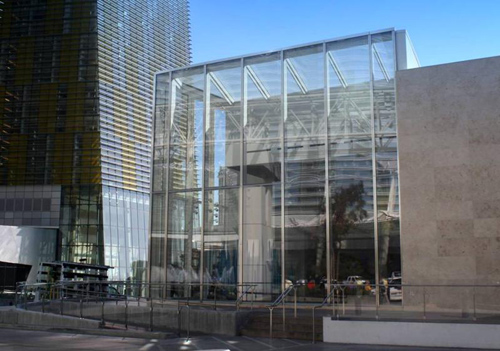

Structural Glazed Steel Storefront Systems


Structural Glazed

The StileLine Structural Glazed System is a wet-glazed modular system featuring no exposure of framing members to the exterior. Modules can be factory welded or bolted together with no exposed fasteners or clips. Installation time, compared to conventional aluminum stick-built systems, is greatly reduced. Structural framing members far outperform aluminum systems.

Structural Glazed Systems are built-to-order to your exacting requirements, offering tremendous latitude in spans, profile dimensions, materials options, and finishes.

Structural Glazed Section Details

S-4 Welded Assembly S-4 Mechanical Assembly S-5 Welded Assembly S-5 Mechanical Assembly S-1 Welded Assembly S-1 Mechanical Assembly S-2 Welded Assembly S-2 Mechanical Assembly S-5 Welded Assembly S-5 Mechanical Assembly S-3 Welded Assembly S-3 Mechanical Assembly S-6 Welded Assembly S-6 Mechanical Assembly

Structural Glazed System Features

  • A60 Galvanized Steel, Stainless Steel, and Bronze
  • Factory Finishes and Metal Surface Treatments
  • Welded or Mechanical Assembly Options
  • Depth and Sightline can be Adjusted to Meet Design & Performance Criteria
  • Modular Design Simplifies Installation
  • Hybrid Options include Bullet Resistant, Fire Rated, and Sound Control

Structural Glazed Glazing Options

Glazing Options

  • Single Glazed
  • Insulated Glass up to 1" OA
  • Hybrid Glass
    • Bullet/Blast Resistant
    • Acoustical
    • Fire Rated
  • Structural or Dry Glazing Options

NOTE: Size of profiles can be adjusted
Actual design of profile may change

Structural Glazed Vents

Features

  • Single Glazed or insulated Glass
  • Vents Include the Following Hardware:
    • 4 Bar Stainless Steel Hinge
    • Stainless Steel Latching Device
    • Weatherstripping
  • Operable Vents Shall be Prehung

NOTE: Size of profiles can be adjusted
Actual design of profile may change

Structural Glazed I-Values



Structural Glazed Specifications



Download Specs
Requires Adobe Acrobat

Download Specs
Requires MS Word

Structural Glazed Hybrid Systems

The ultimate expression of StileLine versatility is exemplified in the creation of built-to-order hybrid storefront and entrance systems. Options such as Bullet-Resistance, Sound Control, and Fire Rating may be combined with standard systems to achieve a desired performance requirement. In cases where aesthetic demands require something creative and unique, our consultants will work closely with you to interpret and clarify your vision. Please contact factory to discuss your particular requirements.

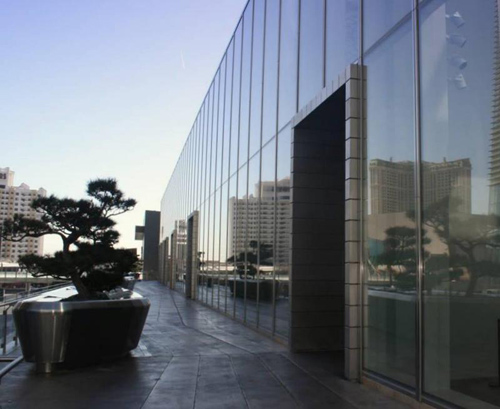

Pressure Glazed Steel Storefront Systems


Pressure Glazed

The StileLineThe StileLineā„¢ Pressure Glazed System is a modular system featuring a design suitable for both wet or dry glazing. Modules can be factory welded or bolted together with no exposed fasteners or clips. Numerous mullion cap options are available for varying aesthetic appeal. Installation time, compared to conventional aluminum stick-built systems, is greatly reduced. Structural framing members far outperform aluminum systems.

Pressure Glazed Systems are built-to-order to your exacting requirements, offering tremendous latitude in spans, profile dimensions, materials options, and finishes.

Pressure Glazed Section Details

P-1 Welded P-1 Mechanical P-2 Welded P-2 P-3 Welded P-3 Mechanical P-4 Welded P-4 Mechanical P-5 Welded P-5 Mechanical P-5 Welded 2 P-5 Mechanical 2 P-6 Welded P-6 Mechanical

Pressure Glazed System Features

  • A60 Galvanized Steel, Stainless Steel, and Bronze
  • Factory Finishes and Metal Surface Treatments
  • Welded or Mechanical Assembly Options
  • Depth and Sightline can be Adjusted to Meet Design & Performance Criteria
  • Modular Design Simplifies Installation
  • Hybrid Options include Bullet Resistant, Fire Rated, and Sound Control

Pressure Glazed Glazing Options

Glazing Options

  • Single Glazed
  • Insulated Glass up to 1" OA
  • Hybrid Glass
    • Bullet/Blast Resistant
    • Acoustical
    • Fire Rated
  • Structural or Dry Glazing Options

NOTE: Size of profiles can be adjusted
Actual design of profile may change

Pressure Glazed Vents

Features

  • Single Glazed or insulated Glass
  • Vents Include the Following Hardware:
    • 4 Bar Stainless Steel Hinge
    • Stainless Steel Latching Device
    • Weatherstripping
  • Operable Vents Shall be Prehung

NOTE: Size of profiles can be adjusted
Actual design of profile may change

Pressure Glazed I-Values

Pressure Glazed Specifications



Download Specs
Requires Adobe Acrobat

Download Specs
Requires MS Word

Pressure Glazed Hybrid Systems

The ultimate expression of StileLine versatility is exemplified in the creation of built-to-order hybrid storefront and entrance systems. Options such as Bullet-Resistance, Sound Control, and Fire Rating may be combined with standard systems to achieve a desired performance requirement. In cases where aesthetic demands require something creative and unique, our consultants will work closely with you to interpret and clarify your vision. Please contact factory to discuss your particular requirements.

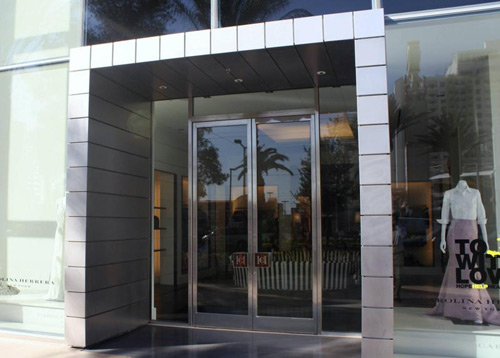

StileLine Commercial Entrance Systems


StileLine™ Stainless Steel Entrance

StileLine Entrances are built-to-order to the highest industry standards, ensuring decades of dependable service. Far superior in structural strength and aesthetic options in comparison to aluminum doors, StileLine™ Entrances are the logical choice for high frequency traffic locations where style and high performance are desired.

StileLine stainless steel and bronze entrances are an excellent alternative to failure-prone clad aluminum doors. Field labor can be greatly reduced by specifying factory-installed.

Commercial Series Entrances

Narrow, Medium + Wide Stile Doors


Series 200
2" Stiles + Top Rail
5" Bottom Rail

Series 300
3" Stiles + Top Rail
6" Bottom Rail

Series 400
4" Stiles + Top Rail
8" Bottom Rail

Series 500
5" Stiles + Top Rail
10" Bottom Rail

Commercial Series Entrance Doors are available in 4 stile and rail sizes, ranging from Narrow Stile (2" Stiles, 5/8" Stops) to Wide Stile (5-1/2" Stiles, 5/8" Stops). Numerous top and bottom rail options are available to satisfy both aesthetic and ADA requirements. A wide range of moulding profiles, glass, hardware and finishes are available, providing unparalleled options.

Far superior in structural strength and aesthetic options in comparison to aluminum doors, StileLine entrances are the logical choice for high frequency traffic locations where style and high performance are desired.

Elevation Options

Commercial Series Entrances - Narrow, Medium & Wide Stile


Full Lite

Mid Panel Panic

Mid Rail

Divided Lite

Arch

Radius

Panel

Flush

Mid Rail
Commercial Series Entrance Doors are available in a variety of elevation options in addition to custom designs and configurations to meet your requirements. Singles, Pairs, Banks, Folding, Sliding, and Stacking door systems, both manual and automatic are available.

Folding

Sliding

Glass Options

Tempered Glass

Tempered glass is approximately four times stronger than annealed glass. When it is broken, tempered glass fractures into smal fragments that reduce the probability of serious injury. 1/4" Tempered glass is typically used in single-glazed door and window applications. Tempered glass meets all safety glazing standards including the federal safety glazing standard, CPSC 16 CFR 1201.

Insulated Glass

The standard 1" commercial IG unit consists of two lites of 1/4" annealed, tempered, or laminated glass, and a nominal 1/2" air space. Custom IG unit designs can be fabricated with glass thicknesses ranging from 1/8" to 3/4" and with airspace thickness ranging from 3/16" to 7/8" having standard spacer colors of clear, bronze and black anodized, and mill finish aluminum. Insulated Glass Chart

Laminated Glass

Laminated Glass is a multifunctional glazing material that can be used in a variety of applications. It is manufactured by permanently bonding two or more lites of glass with layers of polyvinyl butyral (PVB) interlayer, under heat and pressure, to create a single assembly. Laminated glass products are ideal for Safety Glazing Applications, including bullet, blast and forced entry resistant, hurricane resistant, seismic, sound control, and decorative applications.

Bullet Resistant

Bullet resistant glass is a combination of glass and polycarbonate. Polycarbonate is one of the toughest clear plastics, having 250 times the impact strength of glass and is used toward the rear of the laminate to flex and absorb the energy of the bullet. Bullet Resistant glass is assembled in various laminated configurations to meet UL 752 requirements. Bullet Resistant Glass

Sound Control

Sound Control glass consists of proprietary assemblies of laminated glass in various configurations designed to meet specific STC levels in doors, windows, and storefront sections Sound Control Section

Fire Rated Glass

Fire-rated safety glass is made of two lites of annealed clear float glass filled with a proprietary fire-resisting resin that provides fire and safety features without the use of wires. It is considered to have the same bending strength of annealed monolithic glass of the same size and thickness. Fire Rated Glass

Hardware Options

StileLine doors are available with the option of having your hardware supplied and/or factory-installed on most door orders. With 30 years experience in hardware preperation and installation, we will install customer-supplied hardware in accordance with your templates and dimensions.

Exit Hardware

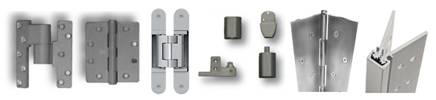

Hinges + Pivots

Bars and Pulls

Closers

Thresholds + Seals

Locks, Latches, + Levers

Window Hardware

Entrances Specifications



Download Specs
Requires Adobe Acrobat

Download Specs
Requires MS Word

Hybrid Entrances

Commercial Series Entrances - Narrow, Medium & Wide Stile


Hybrid: Consisting of diverse components; A composition of multiple elements that work in unison to produce specific results.

The ultimate expression of StileLine versatility is exemplified in the creation of built-to-order hybrid storefront and entrance systems. Option combinations such as Bullet-Resistance, Sound Control, Fire Rating and more may be combined with standard systems to achieve a desired performance requirement. A flow chart of options is illustrated below. Contact factory for details.

Factory Applied Primer

StileLine systems are available factory prime-coated with a proprietary EPA approved Alkyd gray primer (ready for finish painting by others). Our Alkyd primer is sutable for both cold rolled steel and A60 galvanized steel applications.


"Stiles Gray"
Proprietary Alkyd Primer

More Information


Factory Applied Finish Paint

StileLine systems are available factory finish painted with Tnemec 1075 Endura Shield II Acrylic Polyurethane (Allphatic), a superior heavy-duty industrial coating available in standard or custom colors.


Tnemec Advantages

Exceptional Durability

Tnemec makes the most advanced line of architectural coatings in the world. Tnemec finishes are extremely durable, and offer superior adhesion and gloss retention.

Minimal VOCs

Tnemec products comply with low VOC restrictions.

Long Life Cycle

Highly resistant to abrasion, wet conditions, corrosive fumes, and exterior weathering, Tnemec finishes typically last the life of a product with no need for repainting and its associated environmental costs.

More Information


Factory Applied Powder Coat

Some StileLine systems are available with factory powder coat finishes. Powder coating offers good durability, gloss retention, and is a process that has minimal environmental impact.

Common Stainless Steel Abraded Finishes


No. 4 Finish

A lightly grained surface produced by single-directional abrading. The most common bronze finish for architectural products.

Non-Directional Finish

Produced by fine grit orbital sanding (non-directional) on mill finish stainless steel.

No. 8 Finish (mirror polished)

Obtained by polishing with succesively finer abrasives, then buffing with a very fine compound.


Angel Hair Finish

Produced by medium-fine grit orbital sanding, non-directional.

Bead Blasted Finish

Produced by bead-blasting No. 2B (mill) stainless steel. Surface has a matte finish with a dull to glossy sheen depending on the size of glass bead utilized.

Random Swirl Finish

Grained surface produced by random multi-directional abrading.

Clear Coat

An optional high-performance factory-applied clear coat is available in satin, semi-gloss, and high gloss sheens.

NOTE: Illustrations above may differ slightly from actual finishes. Finish samples will be provided for approval at time of order. Special finishes available - contact factory for more information.

Colored Stainless Steel

When stainless steel is specified, there is no reason to limit the color choice to silver. A rainbow of choices are available in both satin (grained) and translucent (mirror polished) colors providing considerable design flexibility for doors and frames. Contact factory for more information.


Colored Stainless - Mirror and Satin Finish


Bronze

Champagne

Gold

Black

Blue

Green

Red

Charcoal

Sampling of Colored Textures


Pampas

Pearl

Paladin

Satin


Colored Stainless Steel

Entrance Doors + Frames
Elevator Door Faces
Panels + Surrounds

Embossed + Etched Stainless Steel

Textured / embossed stainless steel can be utilized for a variety of applications, including panel material. By combining textures and finishes, i.e. a door in No. 4 finish with panels in a textured metal, the result is striking.


RTP

1.HM

2.FL

1.CS

3.QLT

7.DL

DIAGONAL

6.HC

60.LTH

3.ND

6.SL

CHECKER BOARD

Embossing

Stiles produces embossed stainless steel door faces that are available in an unlimited number of design configurations, utilizing square or round dies in several different sizes.

EnviroEtch

Etched finishes are available in varying intensities, producing a striking contrast between finishes. Designs are limited only to your imagination and may include geometrics, free-forms, corporate logos, etc.

Bronze Abraded Finishes

(Abraided Surface Finishes on Alloy 464 Naval Brass)


No. 4 Finish

A lightly grained surface produced by single-directional abrading. The most common bronze finish for architectural products.

Non-Directional Finish

Produced by fine grit orbital sanding (non-directional) on mill finish bronze.

No. 8 Finish

Obtained by polishing with succesively finer abrasives, then buffing with a very fine compound.


Angel Hair Finish

Produced by medium-fine grit orbital sanding, non-directional.

Random Swirl Finish

Grained surface produced by random multi-directional abrading.

Clear Coat

An optional high-performance factory-applied clear coat is available in satin, semi-gloss, and high gloss sheens.

NOTE: Illustrations above may differ slightly from actual finishes. Finish samples will be provided for approval at time of order. Special finishes available - contact factory for more information.

Bronze Patina Finishes

(Patina Finishes on Alloy 464 Naval Brass)


Natural

The natural color of Alloy 464 Naval Brass; a bright golden hue.

Medium Bronze

A rich medium brown with pronounced golden hues. Similar to US5.

Oil Rubbed Bronze

A dark brown color with deep golden tones of varying intensities. Similar to US10B.

Dark Statuary Bronze

A dark brown-black statuary color that varies slightly with the natural characteristics of the metal. Similar to US20A.

Important Facts About Stiles Patina Finishes

Patina finishes offer a natural color variation as opposed to paint or anodizing. The irregular patterns, color intensities and substrate metal all play a part in the ambience of a patina finish. In addition, each individual artist will produce a slightly different "application signature" to the piece. If you require a finish that is perfectly uniform in appearance, we suggest you specify a Tnemec or powder coated finish rather than a patina (metallic paints and powders available).

Clear Coat

An optional high-performance factory-applied clear coat is available in satin, semi-gloss, and high gloss sheens.

NOTE: Illustrations above may differ slightly from actual finishes. Finish samples will be provided for approval at time of order. Special finishes available - contact factory for more information.
